Lab 8: Volcanic Hazards Assessment of Mt. Rainier, Washington

I. Goal

Assess the volcanic hazards associated with Mount Rainier, a dormant but recently active volcano in the Cascade Range of Washington, and compare the results with the US Geological Survey (USGS) Open File Report 98-428 "Volcanic Hazards From Mount Rainier".  We will do so using data stored in a variety of different formats (shapefile, coverage, .e00, geodatabase feature classes, and raster .grd), providing familiarity and practice with commonly used data types.

II. Problem

At 4939 meters (14,410 feet), Mount Rainier is the highest peak in the Cascade Range and one of the highest mountains in the continental US. It is a dormant but recently active volcano that also hosts the largest glacier in the lower 48 states. The combination of potential volcanic activity, high topographical relief, and an ice cap pose significant natural hazards, especially during an eruption. Whereas lava flows from an eruption may be fairly limited in extent, tephra fall and lahar flows could affect populations far from the volcano. What areas could be most affected by an eruption of Mt. Rainier? How many people could be directly affected?  Working with some basic constraints and assumptions, existing digital data can be used to address these questions. Furthermore, we can compare our results to ground-truth data of the USGS to gauge the utility of our hypothetical approach.

III. Data

Data for today's lab comes from three sources:

1. The Washington State Department of Natural Resources GIS web site: county boundaries, rivers, the Mt. Rainier summit, and digital elevation models (DEMs) files;


2. ESRI ArcGIS 9 data disk: a file of populated places in Washington, with 1990 census numbers;


3. USGS: A PDF of USGS OFR 98-428, from which tepha, lahar and volcanic flow hazard areas were extracted and converted to feature classes.  The extraction and conversion process is documented in the metadata for the files.

Metadata for all of the files can be viewed in ArcCatalog.  A copy of OFR 98-428 (and the plates and figures within it) is available in the "Lab_8_data" folder.

The "Lab_8_data" folder and sub-folders contain files with the following formats:

1. ArcInfo Interchange (.e00) files -  DEM rasters, in Arc GRID format, for parts of the counties surrounding Mt. Rainier:
   • king_co - King County, WA
   • pierce_co - Pierce County, WA
   • yakima_co - Yakima County, WA
   • kittas_co - Kittitas County, WA
   • lewis_co - Lewis County, WA
   • thurst_co - Thurston County, WA
2. Coverage
   • County - a coverage of counties in the state of Washington
3. Shapefiles for the following features:
   • all_cities_StatePlaneft - the towns and cities of Washington (as points);
   • Mt_Rainier - the summit of Mt. Rainier (a point);
   • wa_rivers_arc - the major rivers of Washington (lines);
   • WA_State - the State of Washington, (polygon);
   • Area_of_Interest2 - a  rectangular defining the area of interest (AOI) for this lab (polygon).
4. Geodatabase Feature Classes (USGS hazard files):
   • flow_area - hazard area for lava or ash flows (polygon);
   • lahar_polygons- within the Feature Dataset "Lahars", these are hazard areas most likely affected by lahar flows, separated by likelihood of flow recurrence and size (polygons);
   • Tephra_10cm - hazard areas for 10 cm of tephra deposition, displayed as annual percent probabilities (polygons);
   • Tephra_1cm - hazard areas for 1 cm of tephra deposition, displayed as annual percent probabilities (polygons).

Copy the entire Lab_8_data folder to your storage space now.  Do not copy individual files and subfolders - the integrity of some of the data will be destroyed if you do so.  If individual raster files or coverages must be copied, do so with ArcCatalog, not with Windows Explorer.

An MS Word document with the questions for this lab can be found in the Lab_8_data folder.

IV. Procedure

The procedure involves the following general steps:

1. Convert interchange files into ESRI grid format files. Mosaic the individual files into a single Digital Elevation Model (DEM);


2. Select rivers that that have headwaters on Mt. Rainier, and build a new shapefile from these data;


3. Specify hazard zones for both tephra fall and lahar flows. Select towns and cities that would be affected by these hazards;


4. Calculate the area affected by lahars and tephra fall and compare these estimates to those to those of the USGS. Also calculate the total population that would be affected by a volcanic eruption at Mt. Rainier.

We begin first by exploring the data.

A. Explore the Data

1. Open ArcMap and create a new, empty map.
2. Load the State, County, and Area of Interest polygons, the rivers, and the Mt. Rainier and cities point shapefiles.
3. Symbolize these shapefiles so that the Counties are hollow, and the State is visible beneath them. Also make sure that your rivers, area of interest, cities, and Mt. Rainier are symbolized appropriately.

Your map should look similar to the one below:

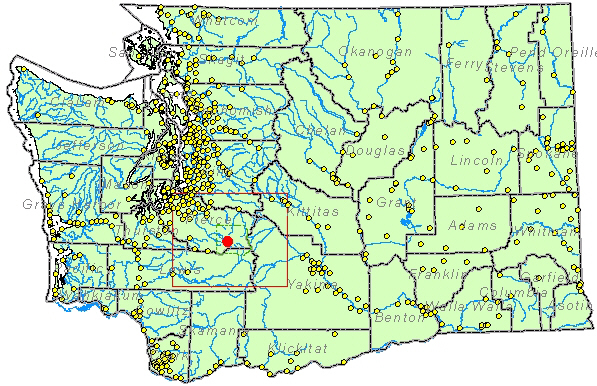

Figure 1. Cities (yellow), counties, rivers and the state of Washington showing the location of the area of interest (red box) and Mt. Rainier (red dot).

4. Use the add data button and try to load the DEM data from the "WA_DEM_E00" folder.

You will notice that ArcMap does not recognize any of the files contained in the folder as data. We will need to fix this.

B. Converting Interchange Files into "Useful" Files

 If we open the "WA_DEM_E00" folder in Windows Explorer, we see that the files within it are of the type ".e00". Data in .e00 are in an ArcINFO Interchange file format. These are simple ASCII files that can be opened and viewed using any common text editor (i.e. Wordpad, Notepad; see Fig. 2). This format is commonly used to make coverages and raster Grid files available online, because it compresses the file size, which helps both with hosting large amounts of data and downloading large files. It also provides a way of maintaining file integrity. Coverages contain hidden files as part of their data structure that might be lost during copying without an interchange format.

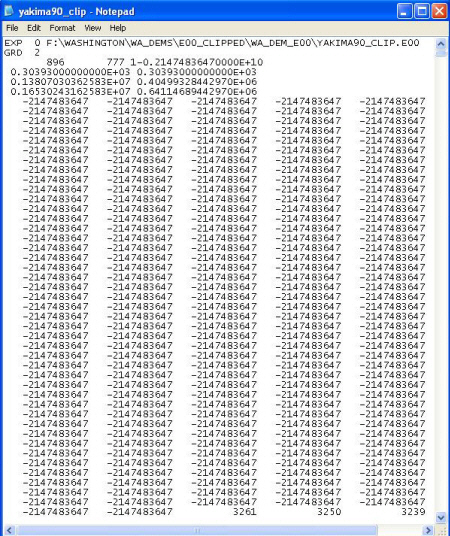

Figure 2. An .E00 DEM file displayed in Notepad

1. From within ArcToolbox, and select the "Coverage Tools" toolbox. Then select the "Conversion" toolbox, and choose "To Coverage". Select the "Import from Interchange File" to open the tool.
2. Leave the "Feature Type" as AUTO. Under "Input Interchange File", click on the folder to the right of the entry area and select one of the .e00 files in the WA_DEM_E00 folder. Make sure that the "Output Dataset" is being mapped to the same folder, and that the name is the same as the file being converted. Then click "OK".
3. Do the same for the remaining .e00 files.

If you get an error message, try again with a shorter file name for the "Output Dataset". Inexplicably, the default file name is sometimes greater than 13 characters and the conversion fails as a result. The same error can result if any of the names in the path to the output file exceed 13 characters, contain a space or contain a special character (e.g. period, asterisks, etc.).  Remember this bug - it may be useful in later project work.

4. Add the new files to your map, placing them at the bottom of the table of contents.

C. Creating a Mosaic of Raster Data

If we wanted to modify the symbology of our DEMs, we would have to symbolize each layer separately. This is inconvenient and tedious, but more importantly usually leads to differences in how identical elevations in different DEMs are symbolized.  Unless the highest and lowest elevations for all DEMs are identical, the same color ramp (see below) applied to each file will yield different colors for the same elevations. One way to avoid this problem is to mosaic the individual rasters to create a single DEM that contains all of the data. To do this, we will again need ArcToolbox.

1. Before getting too far along, create a new, empty folder in your "Lab_10_data" folder entitled "My_Data". This folder will be useful for saving new layers and shapefiles that you create throughout the lab.
2. To begin the mosaic, got to ArcToolbox, Select "Data Management Tools", then "Raster", and open the "Raster Dataset" toolbox (inexplicably the tools we need ARE NOT in the "Mosaic Dataset" toolbox).

We now have a couple of options. We can use either the "Mosaic" or the "Mosaic to New Raster" tool. "Mosaic" is useful if we want to add additional raster data to a pre-existing raster dataset. While this is often useful, we would rather create an entirely new raster that we can give a new name.

3. Choose the "Mosaic to New Raster" tool. Navigate to the folder that contains your raster datasets, highlight them all (hold the shift key down and select the first and last file in the list), and hit "OK". Select the "My_Data" folder as your output location. Name the new raster in the line labeled "Raster Dataset Name with Extension". Read on...

We want the spatial reference for the mosaic (the next entry line in the tool) to be the same as that of the original DEMs.  To ensure this:

4. Open the "Spatial Reference Properties" window by clicking on the icon next to the entry box, choose "Import", and select one of the original DEMs, then hit "OK". This "imports" the same spatial reference from the DEM to the mosaic.
5. Change the "Pixel Type" and the "Cell Size" to match the size of  the original DEMs. Set the "Number of Bands" to 1.  Ignore the rest of the fields and hit "OK".
6. The new DEM mosaic is automatically added to our project, and we can remove the original, single DEMs from the TOC.

The mosaic should resemble the one shown in Figure 3.

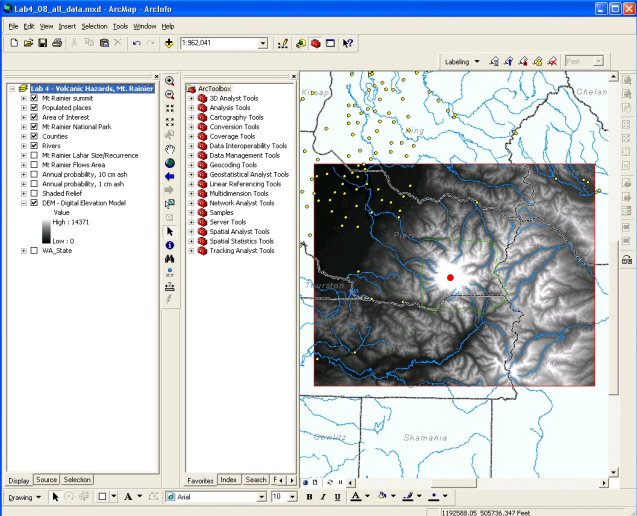

Figure 3 - ArcMap showing Data View of the completed DEM raster mosaic.

D. Selecting Rivers at Risk From Lahar Flows

Lahars are mud-rich debris flows that begin on the steep slopes of volcanoes when rapid melting of snow or ice takes place. Because all that is needed for lahars to form is mobile, unconsolidated sediment (e.g. volcanic ash, lapilli, bombs), steep slopes and lots of water, lahars can form while a volcanic is dormant if enough rain or melt water is available.  Lahars can, of course, also be initiated by rapid melting of snow/ice before or during an eruption. Using existing streams and rivers as conduits, lahars can flow great distances (lahars from Mt. Rainier have flowed into Puget Sound) and be very destructive.  Lahars from Mt. Rainier are considered the single most significant volcanic hazard in the Cascade Range.  Where are the river valleys that are at greatest risk from lahars?

Our "WA_river_arc" shapefile contains all of the rivers in the state of Washington. We are only interested in the ones that drain the slopes of Mount Rainier. These rivers are the most likely conduits for lahars traveling away from the volcano, and we would like to select and isolate them. To select these rivers it would be useful to have a clearer view of the topography so that we could, at a glance, identify valleys and ridges. Having a rendering of the "Aspect" of the topography would help.  The "Aspect" tool derives the aspect, the down slope direction of the greatest rate of change from each raster cell to its neighbor. We can think of aspect as the slope direction or, if we dropped a marble at a point on the surface, the direction it would roll.

1. Open the "Aspect" tool, which is located in ArcToolbox under "3D Analyst Tools" - "Raster Surface". Our "Input Raster" will be our DEM mosaic and the "Output Raster" will need an appropriate name. Again, save it to your  "My_Data" folder. The Aspect map (see Fig. 4) should makes it easier to visually distinguish drainages, ridges and slopes, though you may need to change the color ramp to see this more easily.

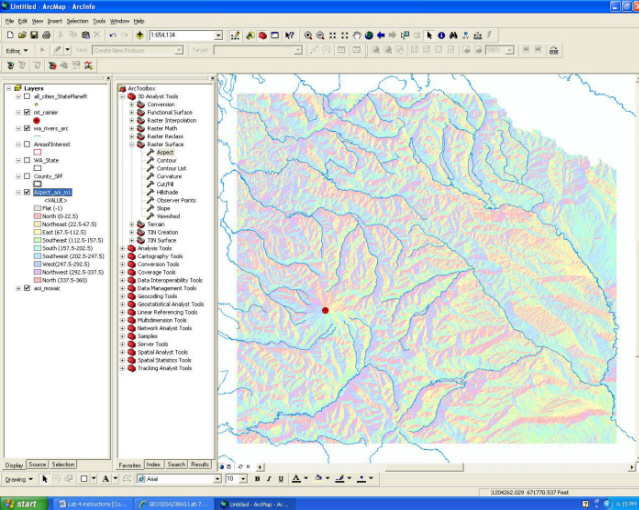

Figure 4 - ArcMap showing Data View of an aspect raster and rivers in an area of interest around Mt. Rainier (red dot).

2. By inspecting the aspect map, identify rivers that have headwaters on the slope of from Mount Rainier.
3. Select these rivers, use the "Select Features" tool  on the standard toolbar. To avoid selecting anything but the rivers, set the "selectable layers" first; this gives you a chance to turn off the "selectability" of all but the rivers. One way to set selectable layers (we learned another in Lab 3) is to click the "List by Selection" button at the top of the TOC, then check on the Rivers layer and turn off all others, as shown in Figure 5 below.

Figure 5. Table of Contents viewed with the List by Selection option. As displayed, only the rivers layers is selectable by any of the selection tools.

4. Make sure that you have selected each river's full reach within the Area of Interest.

We now want to save ("Export") the selected rivers to a new shapefile.

5. Right-click on the "wa_rivers_arc" file name in the TOC, and select "Data" - "Export Data". Then choose to Export "Selected Features" and save the file in your "My_Data" folder.
6. You will then be asked if you want to add the exported data to the map as a layer. Select "Yes".
7. To remove the portions of these rivers that extend beyond the Area of Interest, open the "Clip" tool from ArcToolbox (within toolbox "Analysis Tools" - "Extract"; note that this tool works only for vector data - we used a similar tool in a different toolbox for the rasters in the last lab).
8. Use your new rivers shapefile (these are the rivers at risk from lahars) as the "Input Feature", and choose the Area of Interest polygon as the "Clip Features". Rename the "Output Feature Class" appropriately, and hit "OK".  N.B. for later work: the "Clip Features" tool will only work if the clipping polygon and the data you are clipping have the same Spatial Reference (these do).

Your result should look like Figure 6 below.

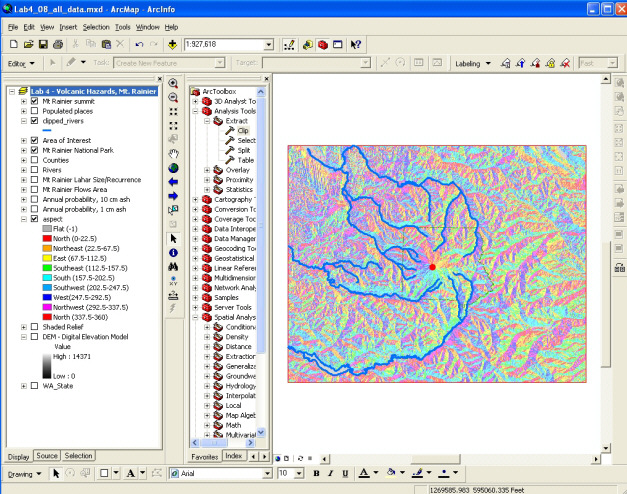

Figure 6. ArcMap Data View of rivers having headwater on the slopes of Mt. Rainier, clipped to the area of interest, and an aspect raster.

F. Viewing Elevation Data in ArcScene

Another way to visualize topography is with the ArcGIS program ArcScene.  ArcScene is for 3D visualization and analysis. You can find it from the Windows "Start Menu"; it is in the ArcGIS program group.

1. Open ArcScene and load your DEM mosaic into the program.
2. Right-click on the mosaic layer title in the TOC, and select "Properties". Under "Properties", select the "Base Heights" tab and click on the radio button next to "Floating on a custom surface:". Make sure that the surface that you're getting the heights from is your DEM mosaic . Then click on "Raster Resolution" and make sure that the cell size is the same as your original surface. Also make sure that the "Z Unit Conversion" is 1 and hit "OK".

Your previously flat DEM should now be a 3D surface (Fig. 7).  Click on the scene, hold the mouse button down, and tilt the scene to see the 3D relief.  Scrolling the mouse will zoom in and out.

3. Now add the "WA_rivers_arc" shapefile and do the same thing, making sure that the base heights are being computed from the DEM mosaic . Under the "Symbology" tab for your DEM mosaic (again in the Layer "Properties" window), select "Stretched" with the "Stretch Type" as "Minimum-Maximum". Set the "Color Ramp" to "Brown to Blue Green Diverging, Dark" (a right-click on the color ramp selector will list the color ramp names) and hit "OK".
4. Under "Scene Layers" select "Scene Properties" and go to the "General" tab. Change the "Vertical Exaggeration" (VE) so that the topography becomes more apparent (in this case, a VE of 2 should be sufficient).
5. We can now see which rivers drain the slopes of Mount Rainier. Use the "Identify" tool to check these rivers against the ones that you selected using the aspect raster in ArcMap.

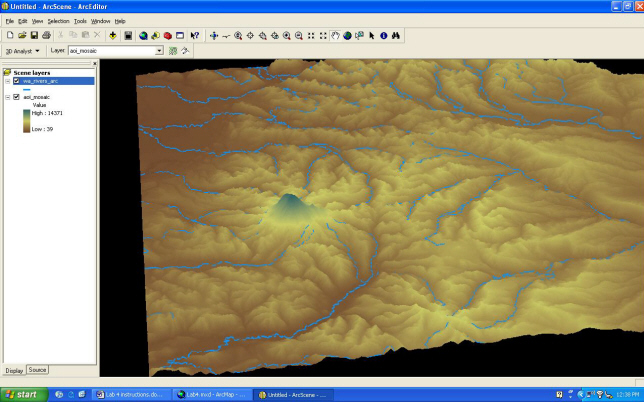

Figure 7.  ArcScene image of the DEM mosaic, rendered with a color ramp, and the rivers file (blue lines). Note that the display shows all rivers, not just those with headwaters on Mt. Rainier.

G. Hazard Assessment

As mentioned at the beginning of the lab, there are two major hazards associated with Mount Rainier: tephra fall and lahar flows. The area affected by tephra fall is directly related to the distance from the summit of Mount Rainier (assuming the eruption is from the summit, not from a lateral blast). Large tephra fragments are capable of causing injury or death by impact, and may be hot enough to start fires where they land, but do not usually come to rest beyond 10 km (~6 mi) from the vent of the volcano. Small tephra is hazardous when accumulation on the roofs of buildings exceeds 10 cm (~4 in), potentially causing collapse, and can extend up to 100 km (~60 mi) from the vent.

Lahars are a different matter. Past lahar flows from Mount Rainier have typically been 10-40 m (~30-120 ft) thick, and have traveled hundreds of kilometers, some extending out into Puget Sound. Areas affected by lahars will be near rivers draining Mount Rainier, so what we would like to do is identify areas along the rivers/streams at risk from lahars of different size.

G.1 We begin with tephra hazards. We would like to create two, superimposed, concentric circles, centered on the summit of Mount Rainier, with radii equivalent to distances potentially affected by large and small tephra fall.  To create these circles we will use a "Buffer" tool. Because we want to create two superimposed circles, we can use the "Multiple Ring Buffer", which can be found in ArcToolbox under "Analysis Tools" - "Proximity".

1. Open the Multiple Ring Buffer too. Under "Input Feature Class" choose the "mt_rainier" point shapefile, and name the "Output Feature Class" appropriately. Now, add the two distances mentioned above (6 mi, 60 mi), making sure that the buffer unit is set appropriately (for this exercise, we will use miles). Leave the "Field Name" blank, and choose "None" as the "Dissolve Option". Now hit "OK".

This creates two superimposed circles (as opposed to concentric rings), which can be use to  calculate the areas of the different tephra hazard zones.

2. Symbolize the newly created buffer layer by "distance" (see Fig. 8).

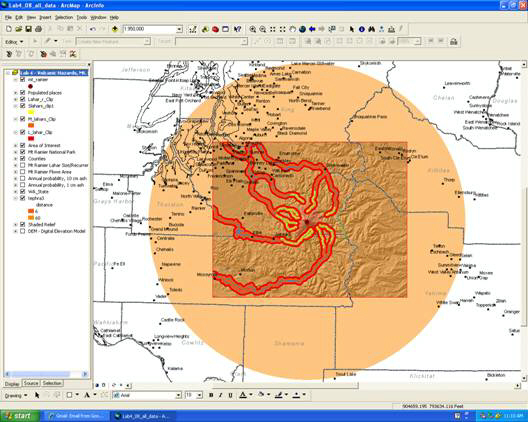

Figure 8.  Buffers of 6 miles (dark orange) and 60 miles (light orange) away from the summit of  Mt. Rainier.

We can now calculate the area of the newly created tephra hazard zones:

4. Open the "Attributes" window of the buffered layer. "Right-click" on the "Area" tab, and choose "Calculate Geometry…". A warning dialogue box will pop up asking you if you would like to continue. Click "Yes". Under "Property", select "Area", and make sure that the "Coordinate System" is set to the coordinate system of the data source. Under "Units", select "Square Miles", and hit "OK". Do the same for the "Perimeter" tab, setting the "Property" to "Perimeter" and the "Units" to "Miles".

G.2 Lahars can be considered as small, medium, or large. These categories are outlined below:

Table 1. Lahar flow size, width, distance traveled

We can use the same buffer tool to identify lahar hazard areas, only this time we will use the clipped rivers shapefile instead of the Mount Rainier summit shapefile. Since the lengths of the lahar events differ, we will use the "Buffer" tool rather than the "Multiple Ring Buffer" tool, and create separate shapefiles for lahars of each size category.

1. Open the "Buffer" tool, and set the "Input Features" to your clipped river shapefile. Appropriately name the "Output Features Class". Set the "Distance" to "Linear Unit", and make it equal to ½ the width of the lahar category that you are creating a buffer for. Set the "Dissolve Type" to "All", and hit "OK".
2. Repeat this process for the other two lahar categories, and symbolize the new buffer layers appropriately.

Notice that this new shapefile extends throughout the area of interest. The Small Lahars only travel 12 miles from the summit (see Table 1). We want to clip these features to an area around the summit of Mount Rainier limited to this distance.

3. Create a single buffer using the Mount Rainier summit point as your "Input Features", and name the "Output Features Class" appropriately. Then set the "Distance" to "Linear Unit" and set the value to "12 miles, and hit "OK".
4. Now use the "Clip" tool (ArcToolbox - "Analysis Tools" - "Extract" - "Clip") to clip the Small Lahar shapefile to the 12 mi radius from Mount Rainier. Also make sure to clip your Moderate and Large Lahar shapefiles to the Area of Interest.

To calculate the areas of the Lahars, we will need to add a new field to the Attributes Table of these layers.

5. Open the "Attributes Table", and using the "Table Options" button at the top of the table, choose "Add Field…". Name the new field "Area", and under "Type" choose "Long Integer". Hit "OK".
6. To calculate areas for each of the lahars, open the attribute table again, right-click on the new "Area" field heading, select "Calculate Geometry", choose "Area" under the "Property" dropdown menu, and "Square Miles" under the "Units" drop down menu.

H. Hazard Assessment, At Last

Remember that the ultimate goal of this exercise is to assess the population affected by a volcanic event at Mount Rainier. We can now select the population centers (cities) affected by tephra fall and lahar flows using the layers that we have created.

1. Use the "Select by Location" tool located under the "Selection" menu to select cities that "are within..." your buffered Larger tephra layer. Open the attribute table for the cities layer, right-click on the field heading for the population field (Pop2000), to find statistics on the selected cities. Record what is needed for Question 8 below. Do the same for the small tephra fall layer, and for the Small, Moderate, and Large Lahar features.

2. Load the USGS layer files to your map (note: by loading the layer files and not the feature classes these layers will be symbolized for you). An explanation of what these layers contain can be found in their metadata (examine in ArcCatalog) and from the USGS Open File Report 98-428 (contained in the lab_8_data folder).

You're Done!
